Condition : Brand New with 1 year limited warranty

Upgrade your Mac Pro 3,1/4,1/5,1 Tower from the build-in outdated SATA II (3Gb/s) to Latest M.2 PCIe SSD Speed

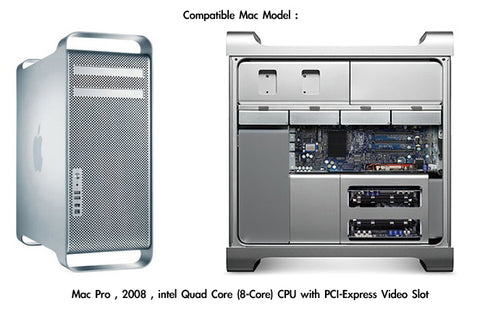

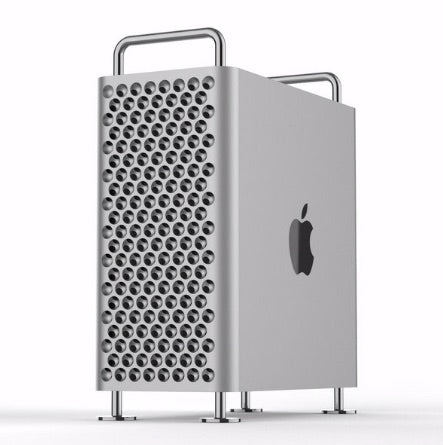

Compatible Mac Model : Apple MacPro 3,1-5,1 from 2008-2012 *MacPro7,1@2019 & Mac14,8@2023 Compatible

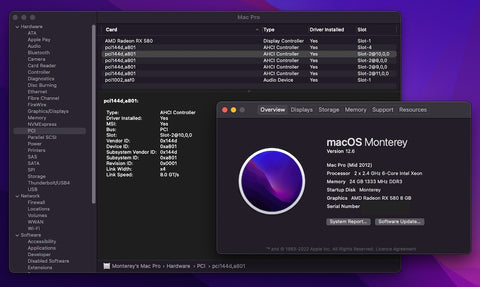

Compatible OS X : OS X Yosemite 10.10.5 - macOS Sierra 10.12.x(AHCI) & macOS High Sierra 10.13.6 to Monterey 12.x & Ventura 13.x (NVMe) *Native Supported, No driver needed

4,1/5,1 with M.2 NVMe SSD Boot support require **Boot Rom Version 144.0.0.0.0 **This Firmware Can Updated From Mojave 10.14.6 installer (No NVMe Boot Support for 3,1)

Specification:

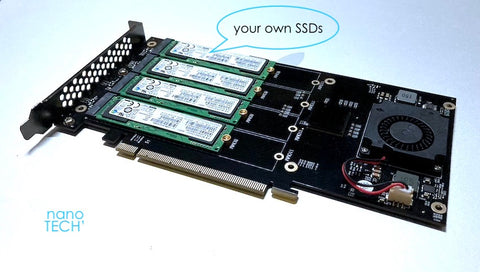

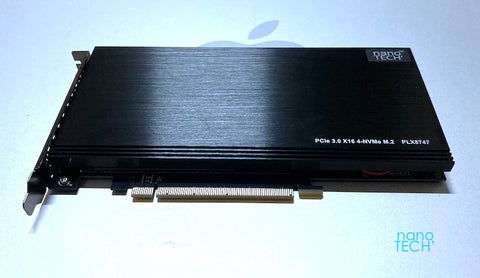

• PLX PEX8747 Switch Controller has a PCIe 3.0 x16 upstream port as well as four PCIe 3.0 x4 downstream ports. The switch is designed primarily for storage devices, enabling installation of four AHCI/NVMe drives on a single card.
• This card uses PEX8747 PCIe switches and therefore does not rely on PCIe bifurcation supported by CPU or PCH (i.e., they will work on closed end systems that have limited PCIe bifurcation capabilities) as well as on software RAID technologies supported by the platform.
• Dedicated PCIe 3.0 x16 bus bandwidth fully maximizes AHCI/NVMe SSDs performance
• Delivers unprecedented fast transfer speed via intelligently aggregated Dual x16 PCIe 3.0 bus bandwidth
• Support Main Board with PCI-Express 3.1 /3.0 /2.0 Slot

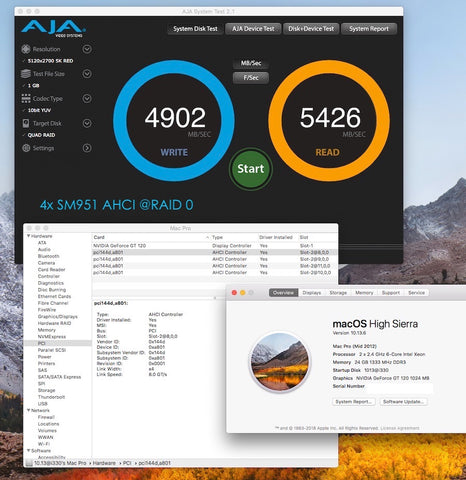

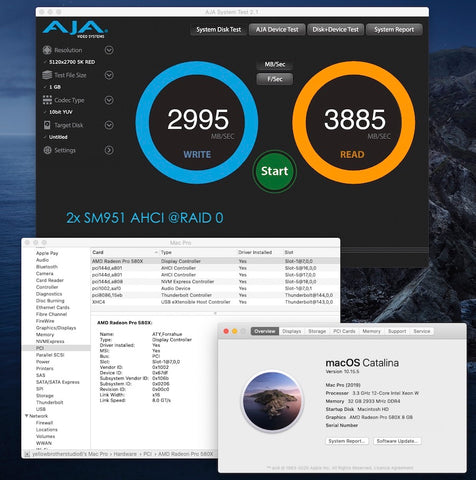

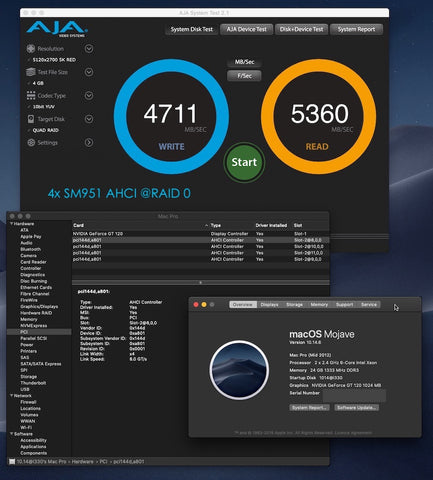

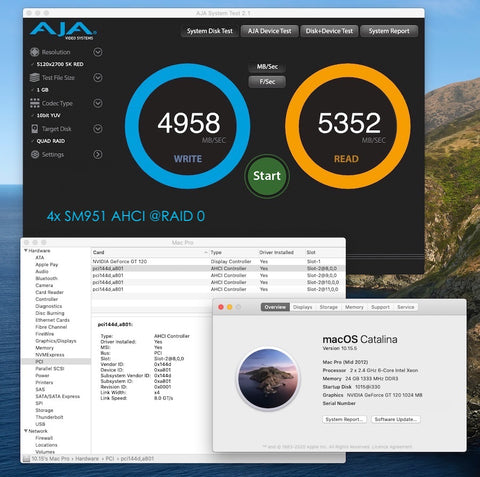

• AHCI/NVMe RAID is supported base on the motherboard chipsets & macOS Disk Utility

*Actual performance may vary based on hardware, software, and overall system configuration.
