4 Port SuperSpeed USB 3.0 PCI-Express 2.0 x4 lane High Bandwidth Adapter

nanoTECH'

  • $109.98


Condition : Brand New with 1 year limited warranty

Upgrade your MacPro with SuperSpeed USB 3.0 Port, 10x faster than Build-in USB 2.0 Port

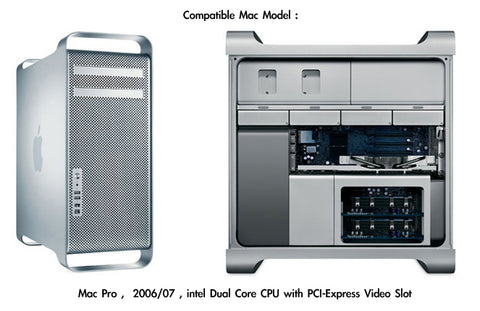

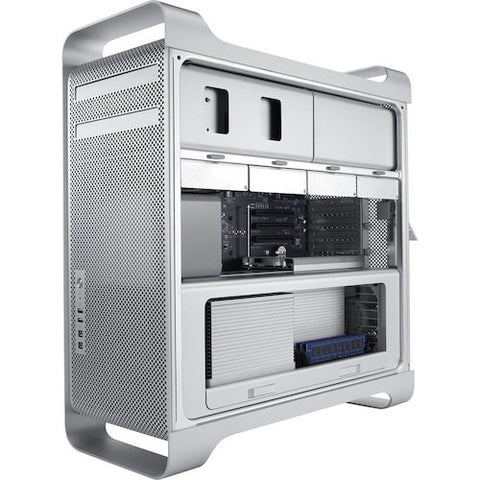

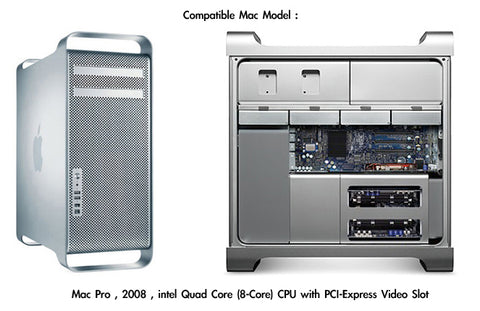

Compatible Mac Model : Apple MacPro 1,1-5,1 from 2006-2012

Compatible OS X :  Mountain Lion 10.8.5 or higher & macOS Mojave 10.14  & Catalina 10.15.x Compatible  (Native Supported , No driver & extra power needed)

Bootcamp Supported ( windows 10 / 8.x / 7 / Vista / XP 32/64-bit )


Specification
 Complies with PCI Express Base Specification Revision 2.0
 Complies with Universal Serial Bus 3.0 specification Revision 1.0
 PCI-E 2.0 x 4-Lane 20Gb/s bandwidth
4 x USB 3.0 ports with Type-A connectors
4 x USB 3.0 ports through Internal connectors
SuperSpeed USB 3.0 - 5Gbps for each port (4 Dedicated Controllers)
 Complies with eXtensible Host Controller Interface (xHCI) Specification Revision 1.0
 Backwards compatible to USB 2.0 & 1.1 devices
 Supports the following data transfer rate:
 - USB 2.0 mode up to 480 Mbps*
 - USB 3.0 mode up to 5 Gbps*
 Supports Bulk Only Transfer (BOT) mode and USB Attached SCSI Protocol (UASP) mode
 Max. 5V/900mA guaranteed current output for each port


**Dedicated Controllers Eliminate the Need to Share Bandwidth Between USB 3.0 Devices

**come with two 19-pin to USB 3.0 2-Port extended cable , you can add 4 more USB 3.0 Port to this adapter ( totally 8 Ports ), *when extended to 8 Ports , Four USB 3.0 controllers will share bandwidth to all 8 USB 3.0 Port while all ports are running.



*This term does not represent actual data rate of 480Mbps & 5Gbps and simply indicates compliance with USB 2.0 & USB 3.0 standards. Actual maximum data rate depends on computer configurations, cable conditions as well as connected devices.

 *Actual performance may vary based on hardware, software, and overall system configuration.

*Actual PCB colour may vary , but not affect the functional of this adapter
