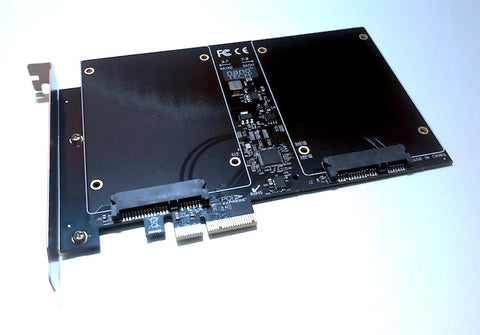

Dual SATA 2.5-inch SSD/HDD RAID Controller Card Adapter

nanoTECH'

  • $94.98


Condition : Brand New with 1 year limited warranty



Upgrade your Mac Pro Tower from the build-in outdated SATA II (3Gb/s) to Latest SATA III (6Gb/s) Speed

Compatible Mac Model : Apple MacPro 1,1-5,1 & 7,1  from 2006-2012 & 2019  *Bootable

Compatible OS X : Leopard 10.5.8 or Higher , macOS Mojave 10.14.x to Sonoma 14.x & Sequoia 15.x  Compatible (Native Supported, No driver needed)



Specification:

Compliant with PCI Express Base Spec. Revision  2.0/1.0a

4x lane PCI-Express Form Factor (2x lane PCI-Express 2.0 interface Supports Communication Bandwidth up to 10.0Gbps)

Two 7+15pin SATA Female interface ( 2.5'' SATA HDD/SSD )

Supports up to Two SATA III (6.0Gbps) with point-to-point connectivity

Supports native Command Queue (NCQ)

Supports Hardware RAID 0, 1, 10 and JBOD (windows/Linux)

HyperDuo mode supports Safe mode (Mirrored Protection) and Capacity mode(Cost-Optimized)

FIS based Port Multiplier

Marvell 88SE9230 HyperDuo Technology

Mac OS X Disk Utility RAID Supported



*Due to MacPro 1,1/2,1 PCIe 1.0 Spec., this controller will limited the speed up to 350mb/s,

For MacPro 3,1/ 4,1/ 5,1 PCIe 2.0 Spec., read/write speed up to 580mb/s (up to 880mb/s at RAID 0 under OS X) For 2.5" SSD

MacPro *3,1 (from 2008) , only Slot 1/2 can run at PCIe 2.0 Spec.

Due to Hardware difference, 1,1 - 3,1 MacPro will not show boot volume when pressing "Option" key at boot, you have to choose boot volume before restart at Startup Disk menu)

*Actual performance may vary based on hardware, software, and overall system configuration.
